The Complete Guide to French Drain Installation

Why French Drain Installation Matters for Your Home

French drain installation is a proven method to collect and redirect groundwater away from your home’s foundation, preventing basement flooding and structural damage. A French drain provides an easy, gravity-fed path for water to flow to a safe discharge point before it can cause problems.

If you see water pooling in your yard or basement, notice musty smells, or find cracks in your foundation, a French drain can be the solution. The system works by pulling water from saturated soil into a gravel-filled trench containing a perforated pipe, which then carries it downhill and away from your house.

Basic French Drain Installation Steps:

1. Plan: Identify water problem areas and a safe discharge point.
2. Dig: Create a trench at least 8-12 inches wide with a minimum 1% slope (1-inch drop per 10 feet).
3. Line: Place landscape fabric in the trench to prevent soil from clogging the pipe.
4. Install: Add a gravel base, lay the perforated pipe (holes down), and cover with more gravel.
5. Backfill: Wrap the fabric over the gravel and fill the trench with topsoil or stone.

I’m Nelson Manso, and with 29 years of experience in basement waterproofing and french drain installation in Monmouth County, I’ve helped hundreds of homeowners protect their properties. This guide will walk you through the essentials of the installation process.

What is a French Drain and Why Do You Need One?

A French drain is a subsurface drainage system consisting of a gravel-filled trench and a perforated pipe. It’s designed to manage excess surface and groundwater by redirecting it away from your property. You may also hear it called a curtain drain, perimeter drain, or weeping tile.

How it works: Groundwater and Surface Water Diversion

A French drain uses gravity to solve water problems. When soil becomes saturated, water seeks the path of least resistance, which is the gravel-filled trench. A water-permeable landscape fabric lines the trench, preventing soil and debris from clogging the system. Water flows through the gravel, enters the perforated pipe (with holes facing down), and is channeled downhill to a safe discharge point, such as a storm drain, dry well, or a lower part of your property.

Why You Might Need a French Drain: Solving Common Water Problems

As Nelson Manso, I’ve seen how a well-installed French drain can transform a property. Here are the key issues it can solve for homeowners in Monmouth County:

• Soggy Yard Solution: Intercepts and diverts excess moisture from waterlogged patches in your lawn, making your yard usable again.
• Basement Flooding Prevention: An interior or exterior French drain collects water before it can accumulate in your basement, preventing costly flooding and damage.
• Foundation Protection: By keeping the area around your foundation dry, a French drain prevents water from causing cracks, erosion, and other serious structural problems, saving you from expensive Foundation Repair.
• Managing Runoff: Effectively manages water from sloped terrain or hardscaping, preventing pooling and erosion.
• Relieving Hydrostatic Pressure: Alleviates water pressure building up in the soil behind retaining walls or against your foundation, which can prevent bowing and collapse.

Your Guide to French Drain Installation

Planning Your Project: Tools, Materials, and Location

Thorough planning is the key to a successful french drain installation. Before digging, you must understand your property’s drainage needs.

Site Assessment and Planning

First, walk your property during a heavy rain to see where water pools. Identify the highest and lowest points to map an effective path for your drain. The water needs a safe place to go, such as:

• Daylighting: Exiting on a lower slope on your property.
• Dry Well: An underground pit that allows water to percolate into the ground.
• Storm Sewer: Connecting to a municipal system (requires permits).

For the drain to work, it needs a minimum 1% grade—a 1-inch drop for every 10 feet of pipe. You can measure this with stakes, a string, and a level.

Essential Tools and Materials

• Shovel or trenching tool
• Level and string
• 4-inch perforated drainage pipe (rigid PVC is recommended)
• Coarse, washed drainage gravel
• Water-permeable landscape fabric (geotextile)
• Wheelbarrow and tamper
• Catch basin (optional, for collecting surface water)
• Safety gear (gloves, glasses, boots)

Critical Pre-Digging Steps

Before you dig, you MUST complete these steps:

1. Call 811: Dial 811 or visit their website to have local utilities mark underground lines on your property for free. This prevents dangerous and costly accidents.
2. Check Local Building Codes: Contact your municipality to inquire about permits for excavation or drainage work and check for any local regulations.

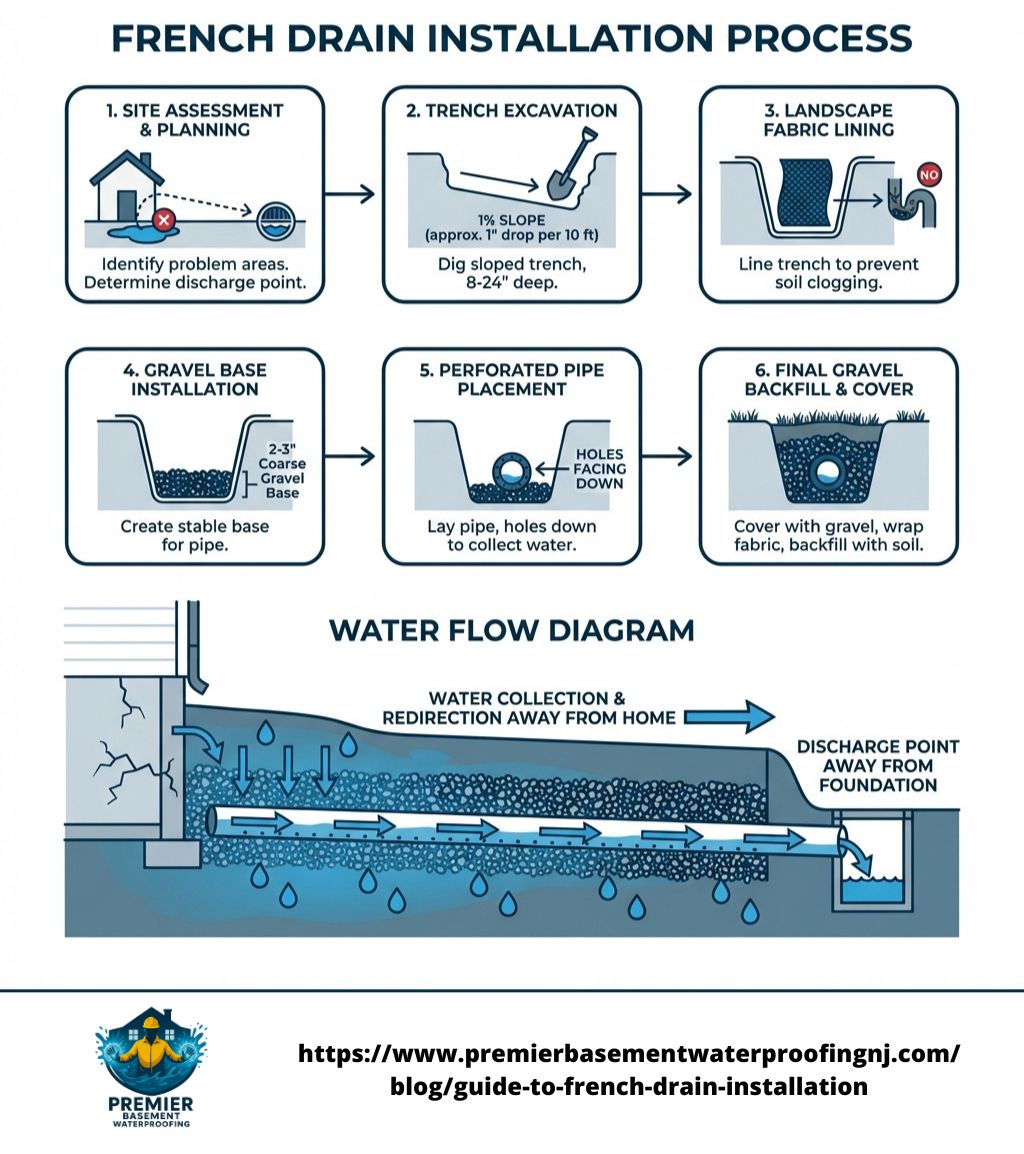

Step-by-Step Exterior French Drain Installation

Once planning is complete and utilities are marked, the installation can begin.

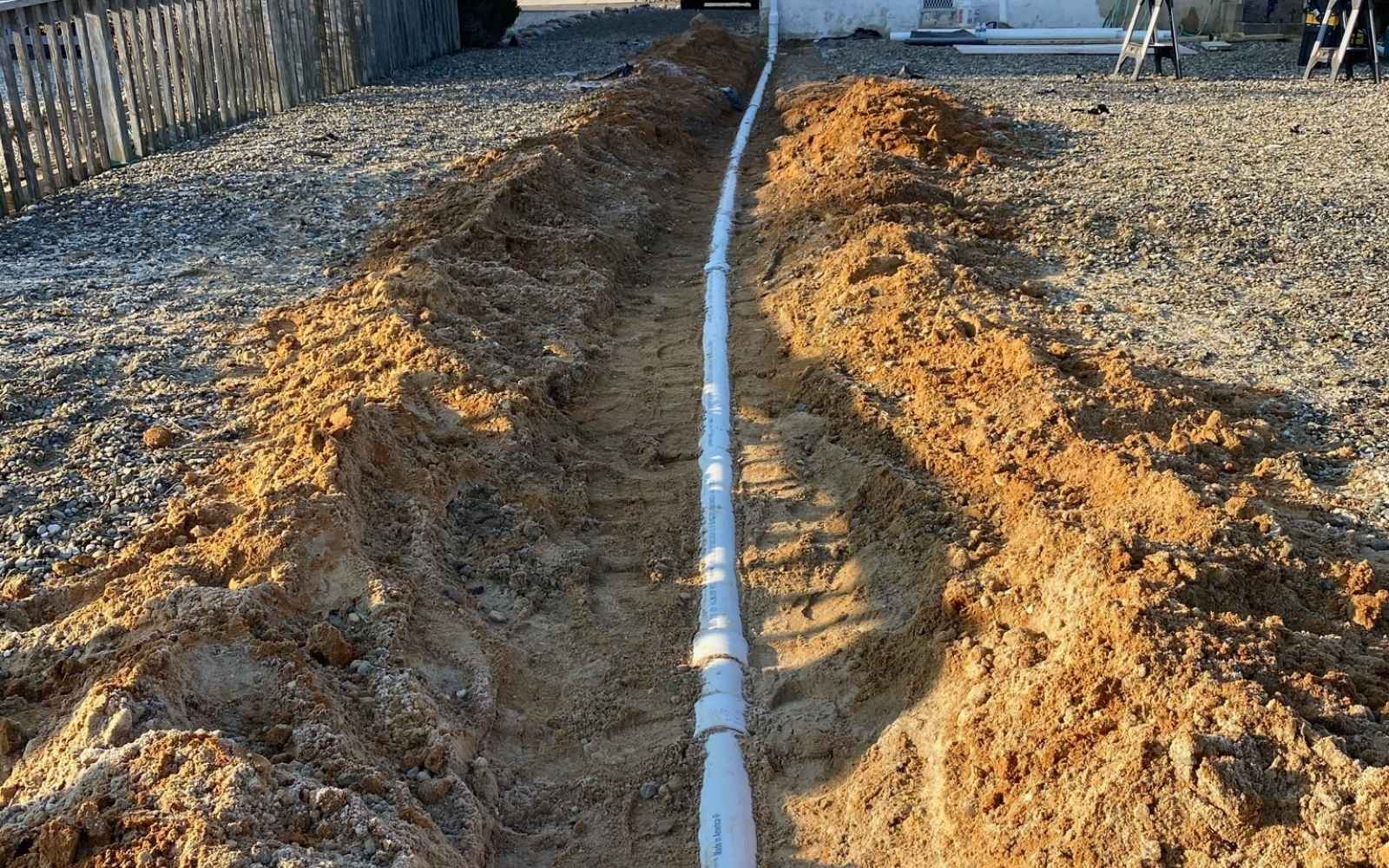

1. Dig the Trench: Following your marked path, dig a trench 9-12 inches wide and 18-24 inches deep. Continuously check that you are maintaining the 1% slope.
2. Line with Fabric: Lay the water-permeable landscape fabric along the bottom and up the sides of the trench, leaving about a foot of excess on each side.
3. Add Gravel Base: Pour a 2 to 3-inch layer of coarse drainage gravel into the bottom of the fabric-lined trench.
4. Lay the Pipe: Place the 4-inch perforated pipe onto the gravel bed with the drainage holes facing downward. This allows water to enter from below as the ground becomes saturated.
5. Backfill and Finish: Cover the pipe with several inches of gravel. Fold the excess fabric over the top of the gravel to create a “burrito” that protects the system from soil. Fill the rest of the trench with topsoil for grass or with decorative stone.

For a comprehensive approach to managing water around your home, explore more info about our Drainage Solutions.

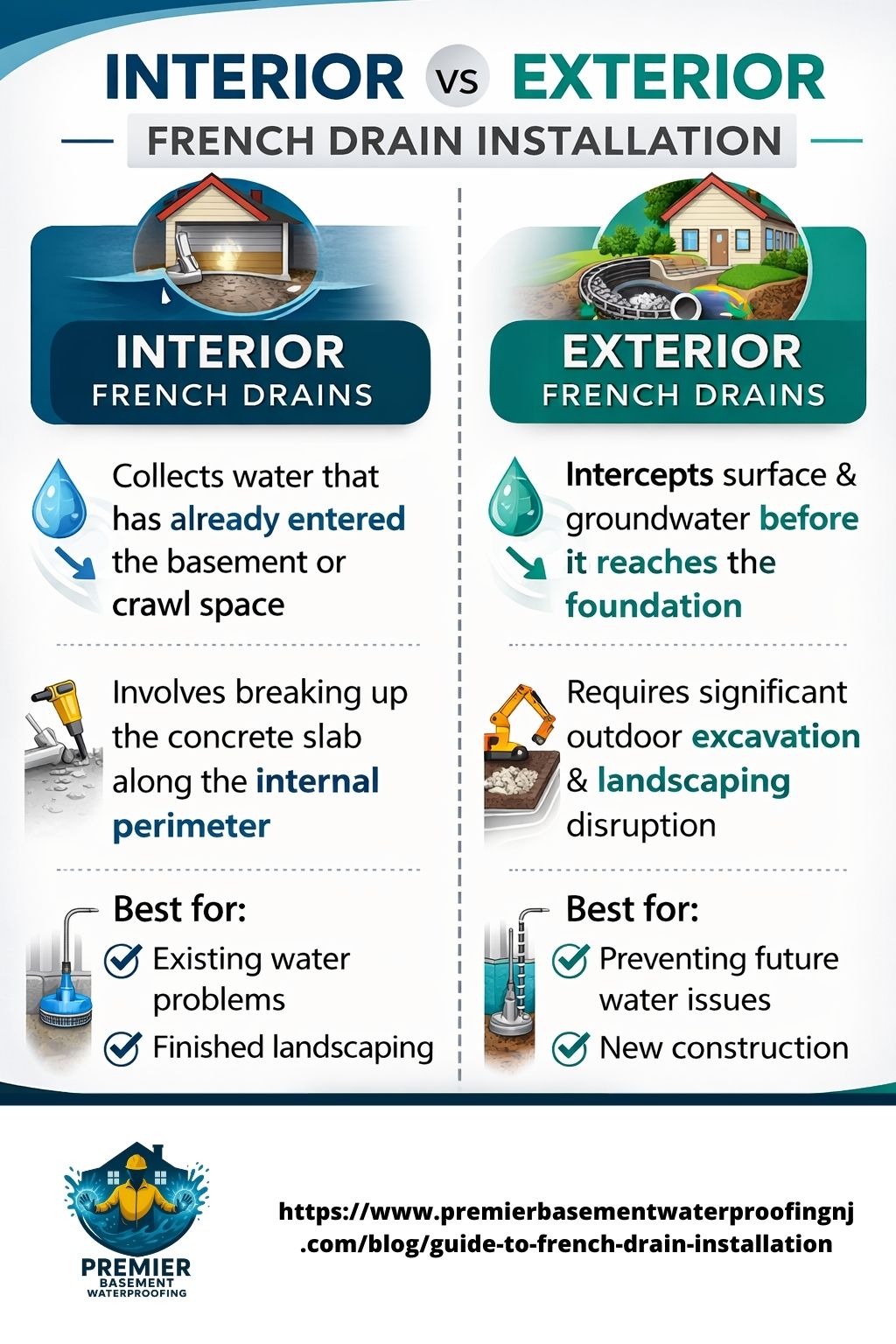

Interior vs. Exterior Drains: Which is Right for You?

Depending on your water problem, you may need an exterior drain, an interior drain, or both. As Nelson Manso, I help Monmouth County homeowners determine the most effective system for their property.

Exterior drains are a proactive defense, stopping water before it reaches your foundation. Interior drains are a solution for water that has already entered the basement, often due to hydrostatic pressure from a high water table. They are essential for comprehensive Basement Waterproofing.

How to Handle a Basement French Drain Installation

An interior french drain installation is a highly effective way to keep a basement permanently dry. This system works by collecting water at the source of entry and directing it to a Sump Pump.

The Process: From Concrete to Collection

1. Preparation: We protect your belongings and use HEPA filters to minimize dust.
2. Break Concrete: We carefully break up a 12-18 inch wide channel in the concrete slab around the basement’s inner perimeter.
3. Dig Trench: We dig a trench sloped towards the sump pump pit.
4. Drill Weep Holes: For concrete block walls, we drill small “weep holes” to allow trapped water to drain into the system.
5. Install System: We lay a bed of crushed stone, install a 4-inch perforated pipe, and connect it to the sump pump pit.
6. Add Vapor Barrier: A drainage board and vapor barrier are installed to direct wall seepage into the drain and block moisture.
7. Re-pour Concrete: The trench is filled with more stone, and new concrete is poured over the system, restoring your floor to a smooth, level finish.

After the Installation: Benefits and Long-Term Care

Key Benefits of a Professional Drainage Solution

Investing in a professional french drain installation protects the long-term health and value of your home. The benefits are immediate and lasting.

• Prevents Basement Flooding: Actively diverts water to eliminate the threat of flooding and protect your belongings.
• Protects Structural Integrity: Safeguards your foundation from water-induced cracks and erosion. Learn more with our Foundation Repair services.
• Reduces Mold and Mildew: Creates a drier, healthier environment by eliminating the moisture that mold and mildew need to grow.
• Eliminates Musty Odors: A dry basement is an odor-free basement, making your home feel fresher.
• Increases Usable Living Space: A waterproofed basement can be safely finished and transformed into valuable living space.
• Boosts Property Value: A professionally installed drainage system is a major selling point that demonstrates proactive home maintenance.
• Manages Yard Drainage: Solves issues like soggy lawns and standing water, creating a more functional outdoor space.

French Drain Maintenance and When to Call a Pro

A properly installed French drain is low-maintenance, but a little attention ensures it functions for years.

Annual Inspection and Care

• Check Outlets: Ensure the discharge point is clear of leaves, sediment, and other debris.
• Inspect Catch Basins: If your system has catch basins, clean them out regularly to prevent clogs.
• Look for Standing Water: If you notice new soggy spots, it could indicate a clog in the system.

Risks of Incorrect Installation & When to Call a Pro

While a DIY approach is tempting, an incorrectly installed system can cause more problems than it solves. Improper slope can lead to stagnant water, while skipping the landscape fabric can cause clogs. Most importantly, digging without calling 811 can lead to hitting a utility line.

The soil type on your property also matters. Heavy clay soil drains slowly and can challenge a standard French drain, often requiring a professional design.

Call a professional for:

• The initial french drain installation, especially for interior systems.
• Complex water problems, high water tables, or challenging landscapes.
• Diagnosing and clearing significant clogs or other performance issues.
